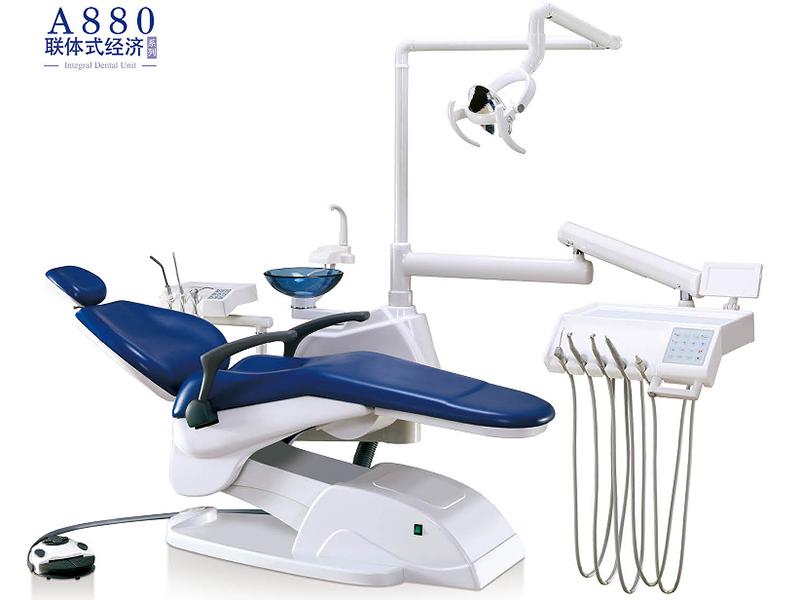

A880 Dental Chair Unit (electric dental chair, handpiece, rotating cuspidor, LED light)
Technical parameters
- Power supply: AC220V/110VC 50/60HZ
- Input power: 1200W
- Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
- Dental operatory light (cold light): AC12--24V/6W--10W
- X-ray film viewer: AC24V/4W
- Water supply thermostat: AC24V/80W temperature: 40℃±5℃
- DC motor: DC24V/L3.8A
- Dental operatory light color temperature: ≤4500K
- Dental operatory light intensity: 7000lux--42000lux
- Minimum height of the chair: ≦50cm
- Maximum height of the chair: ≧75cm
- Load of chair: ≤250kg
- Cushion: < 1.9m
- Load of dental instrument tray: 1.5KG
- Size of dental chair unit: 155*105*125 cm
- Packed weight: 250KG
Features
The A880 Dental Chair Unit uses a hanging instrument tray and vitreous spittoon, allowing the dentist to easily choose the necessary instruments for treatment. The spittoon is also easy to clean. - The chair cushion is made of a PU material and has a curved design based on the structure of the human body, in order to ensure a comfortable treatment for the patient.
- An all-directional automatic control program and three memory heights for the chair make operation fast and easy. The A880 dental chair comes with a single button operation.
- In after-sales repair instances, an easy fitting shell facilitates maintenance of internal components, which saves time.
Component introduction
-
Electric patient chair
- The chair uses electric control for the height
- The chair cushion is made of a soft vacuum memory cotton PU material that is ergonomic, ensuring patients are comfortable during treatment.
- The chair height is controlled using a low voltage DC24V motor with a gas spring to assist, which ensures lifting is stable and fast.
-

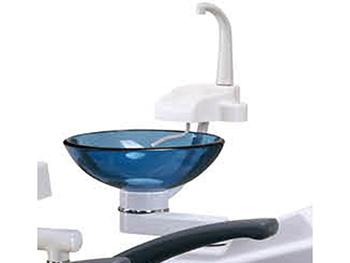

Spittoon
- The spittoon can be turned 90 degrees, which makes spitting easier.
- The water nozzle can be removed, so the disinfection process becomes easier.
-

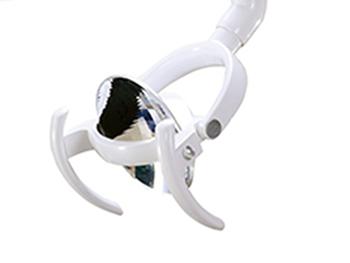

Dental operatory light
- Bright spotlight and uniform distribution of the light spot provides plenty of lighting for the dentist.
- Users can switch the light on/off in a manual or induction mode.
-

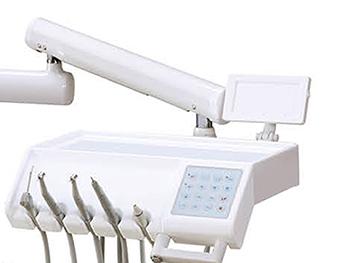

Instrument tray
- The digital display has three memory keys for adjusting the chair's height, which speeds up the adjustment process.
- Dentists and patients alike can clearly see internal oral conditions using the dental X-ray film viewer.
- Four-hole handpiece tubing uses advanced PU material that is corrosion resistant, high-pressure resistant and aging-resistant.
-
Multifunctional foot control
- Dentists can adjust the height of chair and back by using a foot pedal.
- Dentists can also control the spittoon water supply for the mouth rinse cup by using the foot pedal. It can also provide cleaning water.
- A multifunctional foot pedal controls water and air supply for the dental handpiece.
- A multifunctional foot pedal controls the dental handpiece's water/air separation performance.
Standard configurations
- Electric patient chair 1set
- Rotatable vitreous spittoon 1set
- Water supply and conversion system for dental unit 1set
- Mouth wash supply thermostat 1set
- Dentist's module with pneumatic lock 1set
- Touchpad instrument table 1set
- LED dental operatory light 1set
- Four-hole handpiece tubing 3set
- Three way syringe 2set
- Strong/weak saliva suction system 1set
- Multifunctional foot control 1set
- Dentist chair 1set
- Nurse chair 1set
Optional configurations
- Dental scaler
- Curing light
- Dental handpiece with high/low speed
- Medical air compressor
- Medical saliva suction negative-pressure machine
- Intraoral camera (+display)
- Other corollary equipment
